Pentair 356166Z Bonding Lug – Intelliflo 3 3Hp

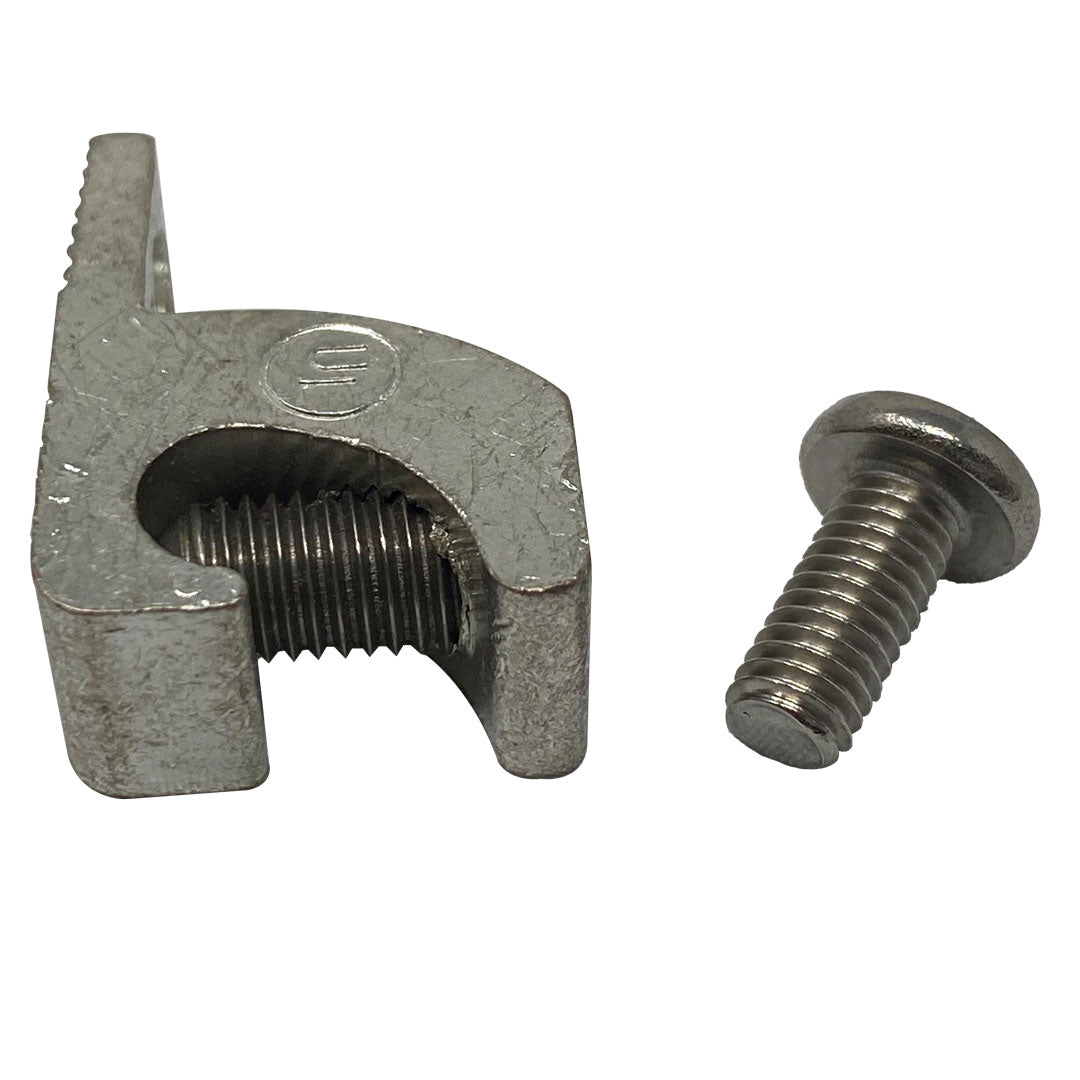

Pentair Bonding Lug || 356166Z

Product Overview

The Pentair Bonding Lug | 356166Z is a crucial OEM replacement part designed specifically for IntelliFlo3 and IntelliPro3 HP Variable Speed & Flow Pumps. This bonding lug ensures proper electrical grounding and safety of your pool pump system by connecting the pump to the pool’s bonding system. Proper bonding helps prevent electrical hazards and ensures compliance with local electrical codes. The 356166Z Bonding Lug is made from durable, corrosion-resistant materials to withstand the harsh pool environment, providing long-lasting protection and peace of mind.

Key Features & Benefits

✅ Genuine Pentair OEM Replacement – This bonding lug is designed and manufactured by Pentair, ensuring compatibility with your IntelliFlo3 or IntelliPro3 HP pump for reliable performance.
✅ Enhanced Safety – Helps establish a secure electrical bond between the pump motor and the pool’s grounding system, preventing potential electrical shock hazards.
✅ Corrosion-Resistant Materials – Built to endure moist, corrosive poolside conditions, ensuring long-term reliability and effective performance.
✅ Easy Installation – Designed for simple installation, the bonding lug ensures that the pump is correctly bonded to the pool’s electrical system, promoting safety.
✅ Official Pentair Warranty – As an official Pentair part, the Bonding Lug (356166Z) is backed by the manufacturer’s warranty, guaranteeing reliability.

Product Details

• Manufacturer: Pentair
• SKU: 356166Z
• UPC: 788379890872
• Compatible With: IntelliFlo3 and IntelliPlo3 3 HP Variable Speed & Flow Pumps

Electrical Information

• Essential for Electrical Bonding: The Bonding Lug is essential for ensuring that the pump motor is properly grounded and connected to the pool’s electrical bonding system. This helps prevent electrical shock risks and ensures that the pump operates safely.
• Compliance with Electrical Codes: Using the Bonding Lug ensures compliance with local electrical codes related to pool pump installations, safeguarding both people and equipment.
• Grounding Performance: The bonding lug helps optimize the performance of the pump’s electrical grounding system, which is crucial for maintaining a safe pool environment.
• Enhanced Durability: Made with high-quality, corrosion-resistant materials, the Bonding Lug (356166Z) will last in the tough, wet conditions of pool areas without compromising performance.

Installation Tips & Tricks

• Turn Off Power: Before replacing or installing the Bonding Lug, ensure the power to the pump is off by disconnecting the electrical supply at the breaker to avoid electrical hazards.
• Locate the Bonding Terminal: Identify the bonding terminal on your IntelliFlo3 or IntelliPro3 pump, where the new Bonding Lug will be attached. This terminal is typically located on the motor or pump housing.
• Attach the Bonding Lug: Securely attach the Bonding Lug to the bonding terminal using the appropriate tools and make sure the connection is tight to ensure a proper electrical bond.
• Connect to Pool Bonding System: Using an appropriate copper wire, connect the bonding lug to the pool’s electrical bonding system, ensuring the wire is securely attached and in compliance with local codes.
• Double Check Grounding: After installation, double-check that all connections are secure and correctly grounded to prevent any potential electrical issues.
• Test the System: Once installed, test the system by turning the pump back on and confirming the pump operates smoothly, ensuring a safe and grounded connection.

Brief History of the Pentair Bonding Lug (356166Z)

Pentair is a leading manufacturer of high-performance pool equipment that prioritizes energy efficiency, safety, and reliability. As part of the IntelliFlo3 and IntelliPro3 3 HP pump systems, the Bonding Lug (356166Z) was designed to ensure safe electrical grounding and to prevent electrical hazards while maintaining optimal performance. With years of experience in creating durable pool equipment, Pentair continues to lead the way in providing innovative solutions for pool owners and professionals.
