Pentair Sand Dollar Top Mount Filter SD80 || EC-145333

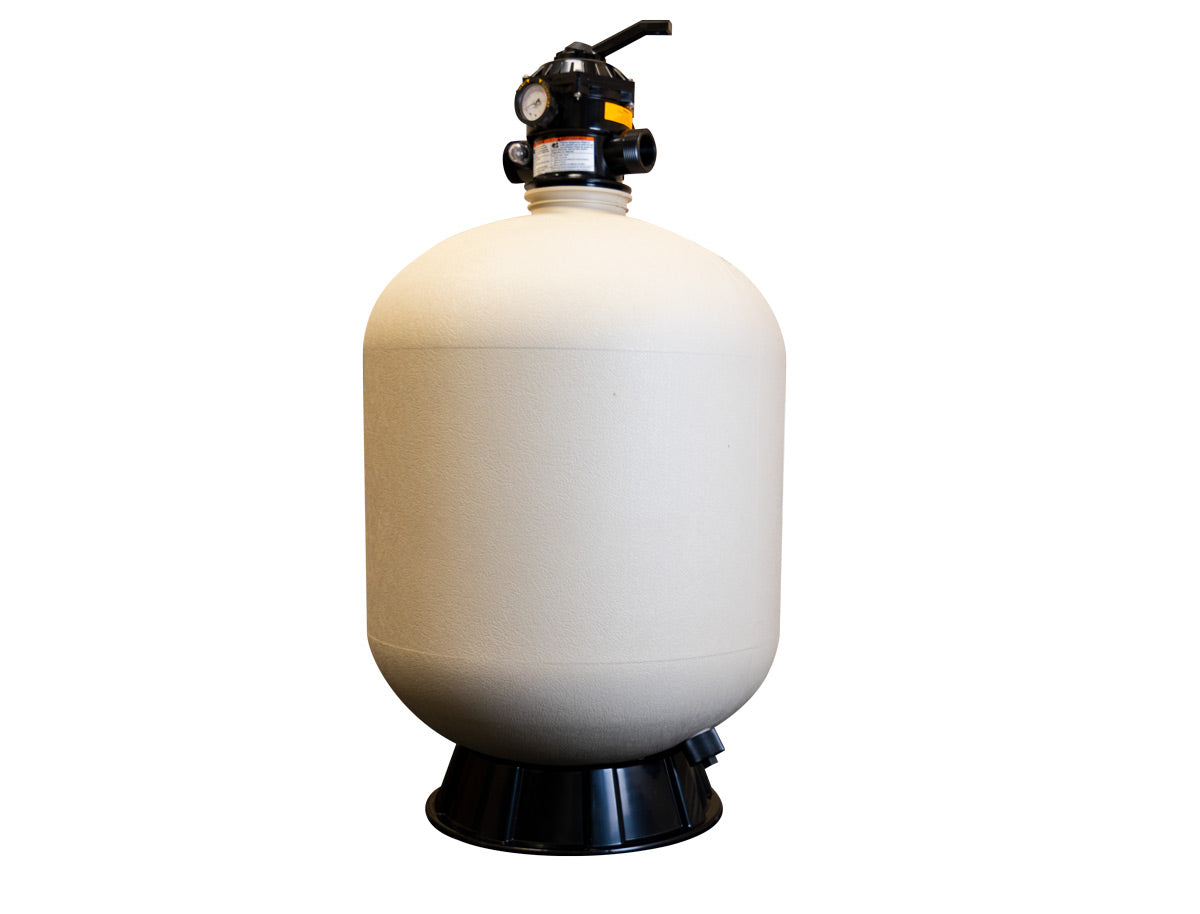

Pentair Sand Dollar SD80 Top-Mount Sand Filter | EC-145333

Large-capacity 26″ diameter top-mount sand filter by Pentair (SKU EC-145333) with ~3.5 sq ft area and ~70 GPM rated flow for demanding residential pools.

Features

• One-piece thermoplastic tank built for corrosion resistance and long-term durability.
• Approximately 3.5 sq ft effective filtration area and flow rated around ~70 GPM — suited for larger pool volumes.
• Top-mounted six-position multiport valve included for filter, backwash, rinse, waste, recirculate, and closed settings.
• A combination water and sand drain simplifies servicing and winterizing operations.
• Internal tank design maintains a flat sand bed and optimizes flow, reducing channeling and extending filter runs.
• Compact footprint given capacity — ideal where space is limited but high flow is needed.

Description

The Pentair Sand Dollar SD80 Top-Mount Sand Filter (SKU EC-145333) is engineered for durability and high performance in large residential pool applications. Its robust one-piece thermoplastic tank resists corrosion, UV exposure, and pool chemical wear — providing a long-life filtration solution. With a large diameter 26″ tank and a designed filtration area of around 3.5 sq ft, it supports higher-flow systems in the ~70 GPM range. The included top-mounted six-position multiport valve simplifies operation and switching between filtration modes, while the combination water/sand drain and efficient tank design reduce maintenance frequency and effort. If you need a dependable high-capacity sand filter built for durability and clarity, the SD80 delivers.

Pro Tip

Before installing, ensure your equipment pad has sufficient clearance for the 26″ tank diameter and the correct plumbing port size. Load approximately 350 lbs of standard #20 silica sand, and be sure your pump/plumbing system does not exceed the ~70 GPM rating for optimum filter life and performance.

Installation Tips

High‐level safety/compatibility notes only: Shut off pump power and relieve system pressure before servicing. Confirm the filter base is level and rated for the sand load (approx 350 lbs) plus tank weight. Use the correct sand media (#20 silica unless an alternate is approved). Verify plumbing size and multiport valve port size (1½″ or 2″ as applicable) and bond/ground per local code. Do not exceed the maximum flow rating (~70 GPM) for this model and follow the manufacturer’s instructions for backwashing and winterizing.
