Pentair Triton II Side Mount Filter (No Valve) TR100 | EC-140210

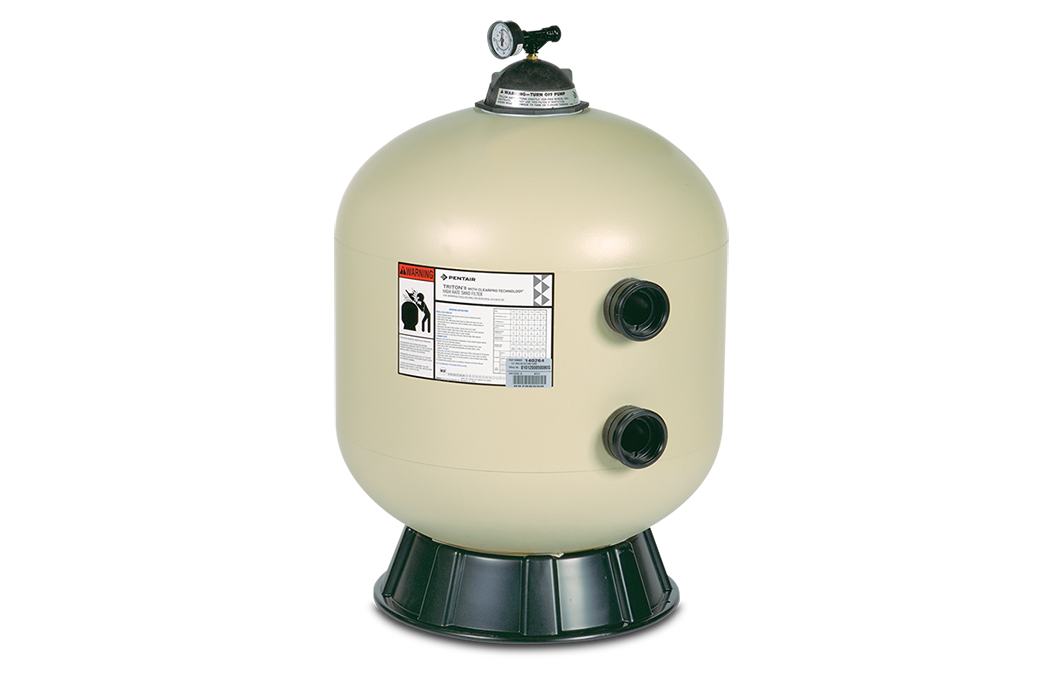

Pentair Triton II TR100 Side Mount Sand Filter (No Valve) | EC-140210

Durable fiberglass-reinforced 30″ side-mount sand filter from Pentair — 4.91 sq ft area, designed for large in-ground pools (valve sold separately).

Features

• One-piece fiberglass-reinforced tank built via GlasLok™ for UV and corrosion resistance.
• 4.91 sq ft filtration area and 30″ diameter tank supports up to 600 lbs #20 silica sand.
• Side-mount configuration allows flexible valve placement; valve not included.
• Heavy-duty closure with built-in pressure gauge and manual air-relief valve simplifies servicing.
• Maximum continuous operating pressure of 50 psi and water temperature up to 104 °F (40 °C).
• Threaded internal components enable easier maintenance and part replacement.

Description

The Pentair Triton II TR100 Side Mount Sand Filter (SKU EC-140210) is engineered to deliver years of dependable filtration in residential in-ground pools. Its one-piece fiberglass-reinforced tank offers outstanding durability and longevity. With a spacious tank and filter area, the unit is ideal for larger systems or high-flow setups. The side-mount design allows your choice of compatible valve (sold separately), while features such as the heavy-duty closure, built-in gauge, and air-relief make inspection and maintenance fast and efficient. Whether installing new or upgrading your system, this filter offers a strong foundation for consistent pool water clarity.

Pro Tip

Since the valve is sold separately, be sure to select a compatible 2″ multiport or push-pull valve rated for the TR100’s flow. Also verify the required sand volume (about 600 lbs) and tank clearance (approx 42″ vertical) before install to ensure proper fit and performance.

Installation Tips

High-level safety/compatibility notes only: Shut off the pump and electrical power before servicing. Verify your plumbing size, clearance, and structural support for a 30″ tank. Use correct volume of #20 silica sand and ensure the filter is level and properly bonded/grounded if required. Follow manufacturer’s instructions for backwash, sand replacement every 5-7 years, and winterizing procedures.
