Pentair 152165 Clamp Assembly 6-½″ Plastic – Sand Dollar / Meteor Filter Clamp – Sand Dollar Top Mount Pool Filter Sd 80

Pentair Clamp Assembly 6-½″ Plastic – OEM 152165 for Sand Dollar / Meteor Filters

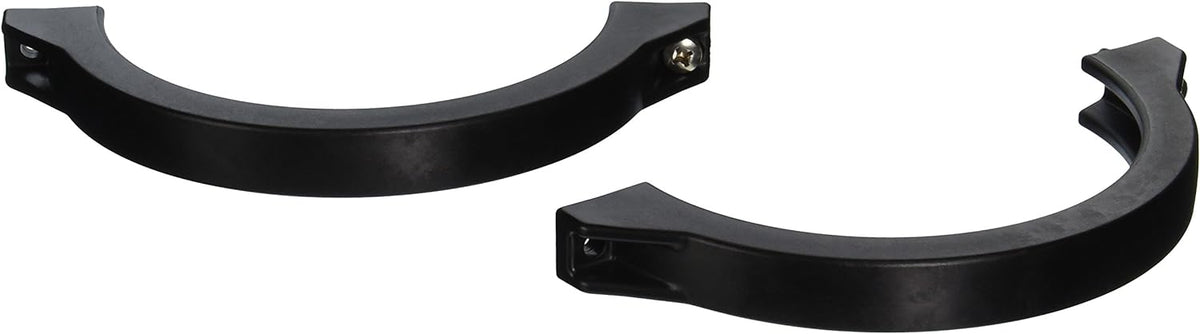

OEM clamp assembly (6-½″) SKU 152165 including screw & nut, for securing the multiport HiFlow valve to Pentair filter tanks.

Features

• 6-½″ plastic clamp designed for HiFlow / six-way valves on Pentair top-mount sand filters
• Includes screw and nut for complete, ready-to-install fit
• OEM part 152165 ensures compatibility with Pentair Sand Dollar, Meteor (after 2004), Tagelus, Cristal-Flo II systems
• Plastic material resists corrosion, chlorine, and pool chemical exposure
• Maintains tight valve-to-tank seal under pressure, reducing leakage risk

Description

This clamp assembly secures the connection between the filter tank and valve head. Inadequate or damaged clamps lead to leaks or misalignment, which reduce filtration efficiency and risk damage to valve components. The 152165 clamp is made of robust plastic, sized 6-½″, and comes with all mounting hardware. It is engineered for long-term service with resistance to environmental and chemical stresses common in pool/spa equipment.

Pro Tip

A new clamp won’t help if the gasket or O-ring under it is worn. Always check and replace both clamp and gasket together to ensure a leak-free seal. If needed, use Valve O-ring / Gasket | SKU 150349.

Installation Tips

Release all pressure and turn off pump before removing old clamp. Verify clamp diameter and valve type match. Tighten clamp hardware evenly to avoid distortion. Ensure gasket or O-ring is seated properly before reassembly.
